In the constantly evolving landscape of modern engineering, precise measurement and monitoring play a crucial role in ensuring accuracy, safety, and efficiency. Among the many tools that engineers rely on, the precision inclinometer stands out as an essential instrument across a wide array of applications. These highly sensitive devices are used to measure angles of slope, elevation, or inclination with an exceptional degree of accuracy. As engineering projects become more complex and demanding, the reliance on precision inclinometers has only grown.
Understanding Precision Inclinometers

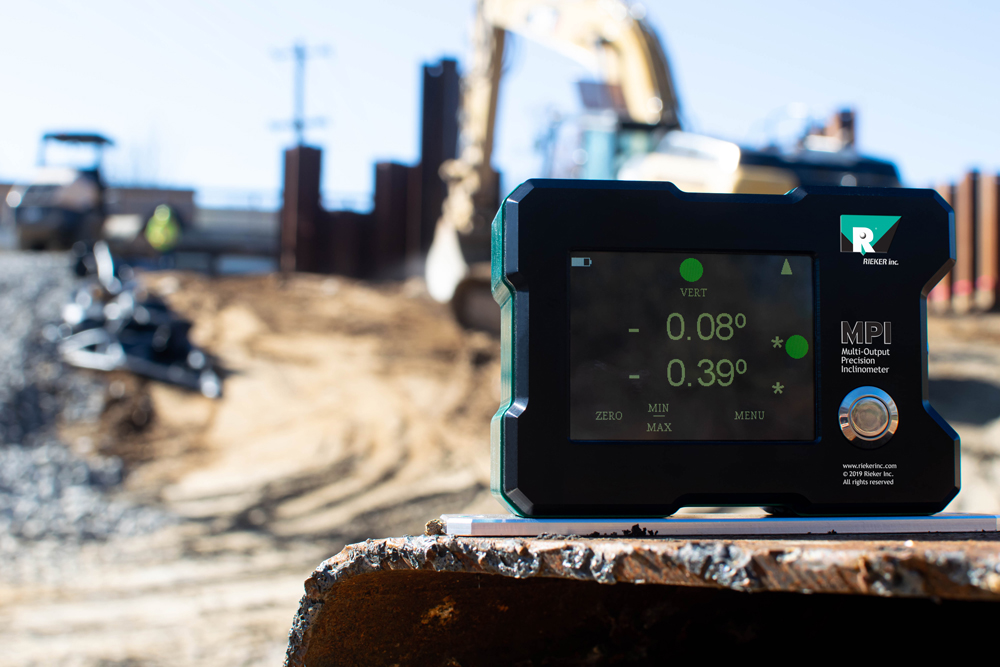

A precision inclinometer, sometimes referred to as a tilt sensor, is a device that measures angular tilt relative to gravity. These instruments are capable of detecting very slight changes in angle, often down to a fraction of a degree. This makes them invaluable in environments where even the smallest deviations can have significant consequences. Precision inclinometers come in various forms, including digital and analog models, and utilize different technologies such as electrolytic, capacitive, or MEMS (Micro-Electro-Mechanical Systems) sensors.
Unlike traditional leveling tools, precision inclinometers offer continuous monitoring, real-time data, and digital interfacing capabilities, which make them ideal for integration into modern control systems and automated environments.
Applications in Civil and Structural Engineering
One of the most widespread uses of precision inclinometers is in civil and structural engineering. In construction projects, especially those involving high-rise buildings, bridges, or dams, the stability and alignment of structures must be meticulously maintained. Precision inclinometers are employed to monitor tilting and deflection in critical components of these structures.
During excavation work, for example, inclinometers help monitor the shifting of retaining walls or the deformation of surrounding ground surfaces. Any significant deviation from expected angles can trigger alerts for immediate corrective action, preventing structural failure or collapse. Additionally, these devices are essential in long-term structural health monitoring, allowing engineers to detect gradual tilting that may indicate foundational issues.
Role in Geotechnical Monitoring
Geotechnical engineering often deals with the behavior of soil and rock masses, which are prone to shifting and settling over time. Precision inclinometers are installed in boreholes to monitor subsurface ground movements. These readings help engineers assess the stability of slopes, embankments, and tunnels.
In landslide-prone areas, continuous inclinometer monitoring can provide early warnings, allowing for timely evacuations or reinforcement measures. The data collected contributes to a deeper understanding of ground behavior under various environmental and load conditions, leading to safer and more sustainable engineering practices.
Precision Inclinometers in Aerospace and Aviation
In the aerospace and aviation industries, precision is not a luxury but a necessity. The deployment of precision inclinometers in these sectors has revolutionized the way engineers test and maintain aircraft and spacecraft. They are used to measure alignment and angular positioning of various components during manufacturing and assembly processes.
Moreover, in-flight systems often include inclinometers for attitude determination, helping pilots and onboard computers maintain the desired orientation. In spacecraft, inclinometers play a role in navigation and attitude control systems, where the slightest error can result in mission failure.
Importance in Industrial Automation and Robotics
The rise of industrial automation and robotics has further emphasized the value of precision inclinometers. In manufacturing plants, robotic arms and automated machinery need to operate with pinpoint accuracy. Precision inclinometers enable precise motion control by providing real-time feedback on angular positions.
This feedback loop ensures that each movement is executed within tight tolerances, improving product quality and operational efficiency. In applications like CNC machining or 3D printing, inclinometers are often part of the calibration process, ensuring that all axes remain correctly aligned.
Marine and Offshore Engineering
Precision inclinometers are also vital in marine and offshore engineering, where equipment and structures are constantly subject to dynamic environmental forces. On ships and offshore platforms, these sensors are used to monitor tilting caused by wave motion, loading conditions, or structural deformation.
In offshore wind farms, for instance, precision inclinometers help in monitoring the tilt of turbine towers, ensuring their structural integrity and operational efficiency. Similarly, in oil rigs, they provide valuable data for assessing the impact of drilling operations on platform stability.
Medical and Biomechanical Applications
Beyond traditional engineering disciplines, precision inclinometers are finding applications in medical technology and biomechanics. They are used in rehabilitation centers to measure joint angles and posture in patients undergoing physical therapy. The precise data helps therapists track recovery progress and tailor treatments more effectively.
In prosthetics and orthotics, inclinometers assist in the design and fitting of devices that must align perfectly with the body’s natural movements. Their ability to provide consistent, accurate angular measurements is indispensable in developing innovative healthcare solutions.
Transportation and Rail Infrastructure
In the transportation sector, inclinometers contribute to the safety and efficiency of rail systems, roadways, and bridges. For rail infrastructure, inclinometers monitor track geometry, identifying shifts or tilts that could lead to derailments. In highway engineering, they assist in the design and maintenance of embankments, overpasses, and tunnels by detecting movement or subsidence.
In vehicle testing, precision inclinometers help assess stability and performance during tilt table tests or dynamic simulations. By analyzing how vehicles respond to angular forces, engineers can improve designs for better handling and safety.
Advancements in Sensor Technology
The evolution of sensor technology has greatly enhanced the capabilities of precision inclinometers. Today’s devices are smaller, more robust, and more resistant to environmental factors such as temperature fluctuations, moisture, and vibration. Many models offer wireless data transmission, making them easier to deploy in remote or hard-to-access locations.
Advanced software integration enables real-time visualization, automated alerts, and seamless data analysis. These improvements have expanded the utility of precision inclinometers across more sectors and use cases, enabling smarter decision-making and predictive maintenance.
Environmental and Renewable Energy Projects
Environmental monitoring and renewable energy projects also benefit significantly from the use of precision inclinometers. In solar energy installations, tilt sensors optimize the angle of photovoltaic panels for maximum sunlight exposure. For wind turbines, inclinometers are used to monitor the structural tilt of towers and nacelles, ensuring optimal alignment and performance.
Additionally, in environmental research, inclinometers help scientists measure changes in terrain, glaciers, or permafrost over time, providing valuable data for climate change studies and mitigation planning.
Conclusion
Precision inclinometers have become indispensable tools in modern engineering. Their unparalleled ability to detect and monitor angular movement with high accuracy makes them vital in ensuring safety, improving performance, and enhancing the longevity of structures and systems. From towering skyscrapers and high-speed rail systems to spacecraft and medical rehabilitation devices, the applications of precision inclinometers continue to grow, driven by the increasing demands of accuracy and reliability in a rapidly advancing technological world.
